The auxiliary winding is also known as starting winding. Click here to view a capacitor start motor circuit diagram for starting a single phase motor.
What Is A Capacitor Start Capacitor Run Motor Its Phasor
Capacitor start capacitor run motor diagram. Also read about the speed torque characteristics of these motors along with its different types. Motor run capacitor wiring diagram ac motor run capacitor wiring diagram capacitor start capacitor run motor wiring diagram pdf capacitor start induction run motor wiring diagram every electric structure is composed of various diverse pieces. The stator has two windings ie. The capacitor c r is connected permanently in the circuit and thus it is known as run capacitor. Figa shows the phasor diagram when at the starting both the capacitor are in the circuit. Each component should be placed and connected with other parts in particular manner.

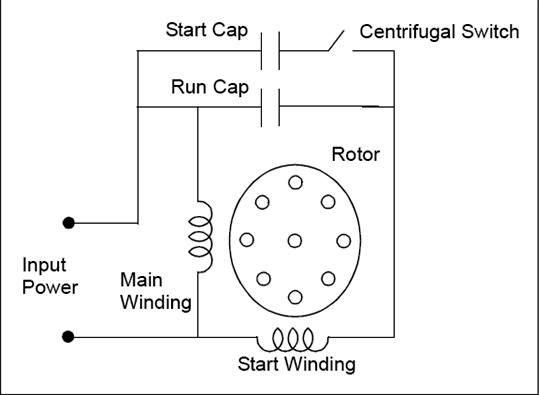

A capacitor start capacitor run induction motor is a single phase motor consists of a stator and a single cage rotor. The run capacitor is long time rated and is made of oil filled paper. Wondering how a capacitor can be used to start a single phase motor. Learn how a capacitor start induction run motor is capable of producing twice as much torque of a split phase motor. Here is the typical circuit of capacitor runstart induction motor. The electrical schematic diagram on the right shows an illustration of a capacitor start motor.
This type of motor is designed to provide strong starting torque and strong running for applications such as large water pumps. In construction these two windings are placed 90 apart in space. Main winding and an auxiliary winding. The applications that uses this motor is air compressors high pressure water pumps wood working machinery vacuum pumps and other application that need high torque 1 to 1o hp. The figure below shows the phasor diagram of the capacitor start capacitor run motor. As you can see this circuit has run capacitor and start capacitor.
Learn how a capacitor start induction run motor is capable of producing twice as much torque of a split phase motor. If not the structure will not work as it should be.
