So this time i want share my simple star delta circuit diagram completed with power and control line circuiti hope it can be as basic reference for all electrician about star delta starter diagram. Star delta starters consist of a power circuit and control circuit.
Star Delta Motor Starter Explained In Details Electrical

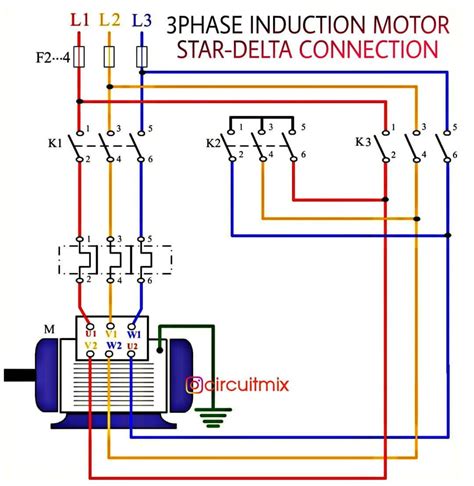

Star delta wiring diagram. Star delta connection diagram and working principle. The initial connection should be in the star pattern that results in a reduction of the line voltage by a factor of 13 577 to the motor and the current is reduced. This type of starting is suitable for small motors below 5 hp 375 kw. Star delta starter wiring diagram this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter. But high load 3 phase motor we use the star delta starter for motor. Refer to the below star delta circuit star delta.
R y b red yellow blue 3 phase linescb general circuit breakermain mai supplyy starδ deltac1 c2 c3 contatcors power diagramol over load relayno normally opennc normally closed k1 contactor contactor coil k1no contactor holding coil. Star delta starter without timer for 3 phase induction motor. Wye delta starter wiring diagram sanelijomiddle wire center. Wye start delta run motor wiring diagram collections of great three phase motor wiring diagram 3 star delta and how to wire. The most active post in electrical engineering centre blog is star delta starter and star delta motor connectioni received many comments and request for star delta circuit diagram. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages.
A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor. More electrical tips and diagrams wwwaboutelectricitycouk like subscribe and dont skip the ads. The power circuit uses to create contact between the motor and three phase power supply. Star delta connection circuit diagram. Wiring diagram for star delta motor starter best wiring diagram star. Wye delta starter wiring diagram sanelijomiddle wire center.
Power control wiring diagram of star delta starter. Short video showing how to wire start delta motor starter. For three phase motor we use the direct online starter but mostly for small three phase motor. Star delta starter control diagram. For star delta staterthe motor connection must have 6 cables from control panel and 6 terminals at induction motor u1u2v1v2w1w3to wiring the motor connection for star delta starterthe important thing that we must fully understand is about the basic of star delta magic triangle. The star delta wye delta starting method controls whether the lead connections from the motor are configured in a star or delta electrical connection.
The control circuit uses to control the starter circuit such as on off and tripping operations.
