Star delta power wiring diagram. Star delta starter wiring diagram this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter. Short video showing how to wire start delta motor starter. Star connection y delta connection δ in star connection the starting or finishing ends similar ends of three coils are connected together to form the neutral pointa common wire is taken out from the neutral point which is called neutral. A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor. The power circuit uses to create contact between the motor and three phase power supply. Refer to the below star delta circuit.
Here the circuit diagram of star delta starter explained in detailhere you will learn the connection of star delta starter with three phase motorthe power circuit diagram and control circuit diagram of an automatic star delta starter are explained belowlets understand the star delta starter diagram. Star delta power and contol wiring with timerhindi. But high load 3 phase motor we use the star delta starter for motor. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. For three phase motor we use the direct online starter but mostly for small three phase motor. Star delta starters consist of a power circuit and control circuit.
In the diagram of power circuit of star delta starter u2 and v2 of 3 phase motor should be connect to 4 and 6 respectively instead of u2 and v2 are connected to 6 and 4 of delta contector km2. This type of starting is suitable for small motors below 5 hp 375 kw. In my last post i share a star delta starter wiring diagram 3 phase motor connection. The control circuit uses to control the starter circuit such as on off and tripping operations. Star delta starter timer off power and wiring control circuit with practical in urdu star delta connection in hindi hindiurdu start delta easy connection in motors electrical terminal. There is minor correction is require to change printed in boxes sequence of 3 phase wires from w2 v2 u2 to w2 u2 v2 to get delta connection properly.

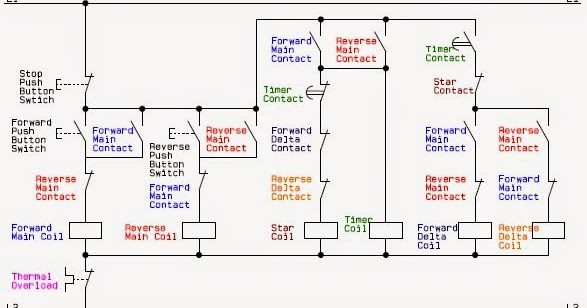

In delta connection the opposite ends of three coils are connected togetherin other words the end of each coil is connected with the starting. Star delta connection diagram and working principle. Star delta starter control diagram. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch.
