Some also have side markers and running lights. You will want to tap into the brown wire for the marker lights.

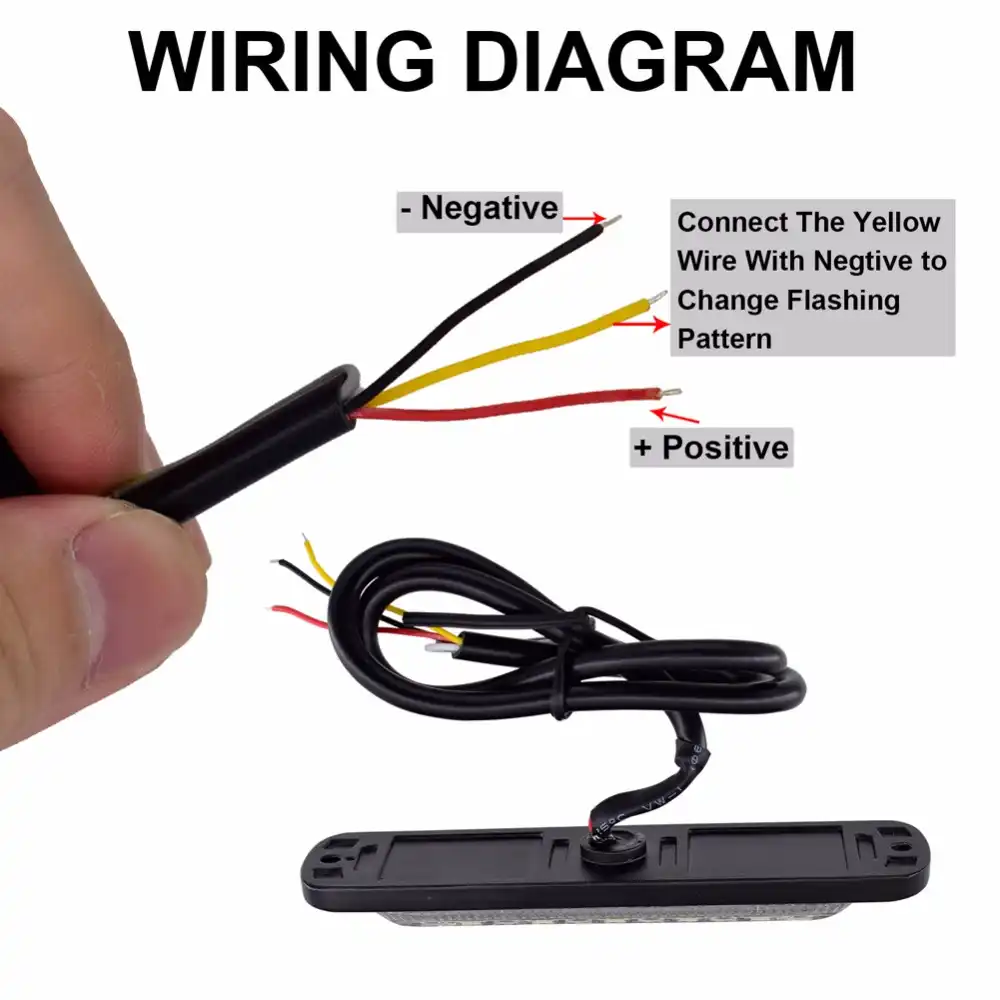

2pcs Strobe Led Side Marker Lights Car Truck 6 Led Flashing Emergency Hazard Warning Light 12v 24v Clearance Lamp Amber Red Drl
Side marker light wiring diagram. The black wire will be the power wire and the white wire is the ground wire. Brakes probably need electricity too to actuate electric brakes or to disable hydraulic brakes when backing up. These too would run off the brown or parking light wiring same as the license plate light. The following trailer wiring diagrams and explanations are a cross between an electrical schematic and wiring on a trailer. Wiring marker lights to either your vehicle or trailer is not complicated and can be performed with a minimum of tools and expertise. With wiring diagram included.
Marker lights must be visible from each side of the vehicle. How to rewire a trailer with led lights. The license plate light would run off the parking lights known as the brown wire so you can pull the power supply from either side. One clearance light on each side and then one larger one at the back. The yellow and green wires are for the left and right turn signals. When installing a sidemarker light such as this optronics trailer light mcl44ab you will want to splice into the signal wire for your trailer running lights circuit and then run the ground wire to a clean metal surface.
If this is a new wiring installation and you are installing wiring like part a35w42b the brown wire that runs down each side of the trailer is for the marker lights and tail lights. And the third diagram using clearance lights. Check with your state rules but most states require red marker lights on both tail lights and amber marker lights mounted near the front of the vehicle.
