To assist with the correct installation please consult the appropriate wiring diagram on this leaflet. The fan need to be of a low voltage type the isolator and transformer are fitted outside the bathroom the isolator is normally placed above the door and often the transformer in the loft.

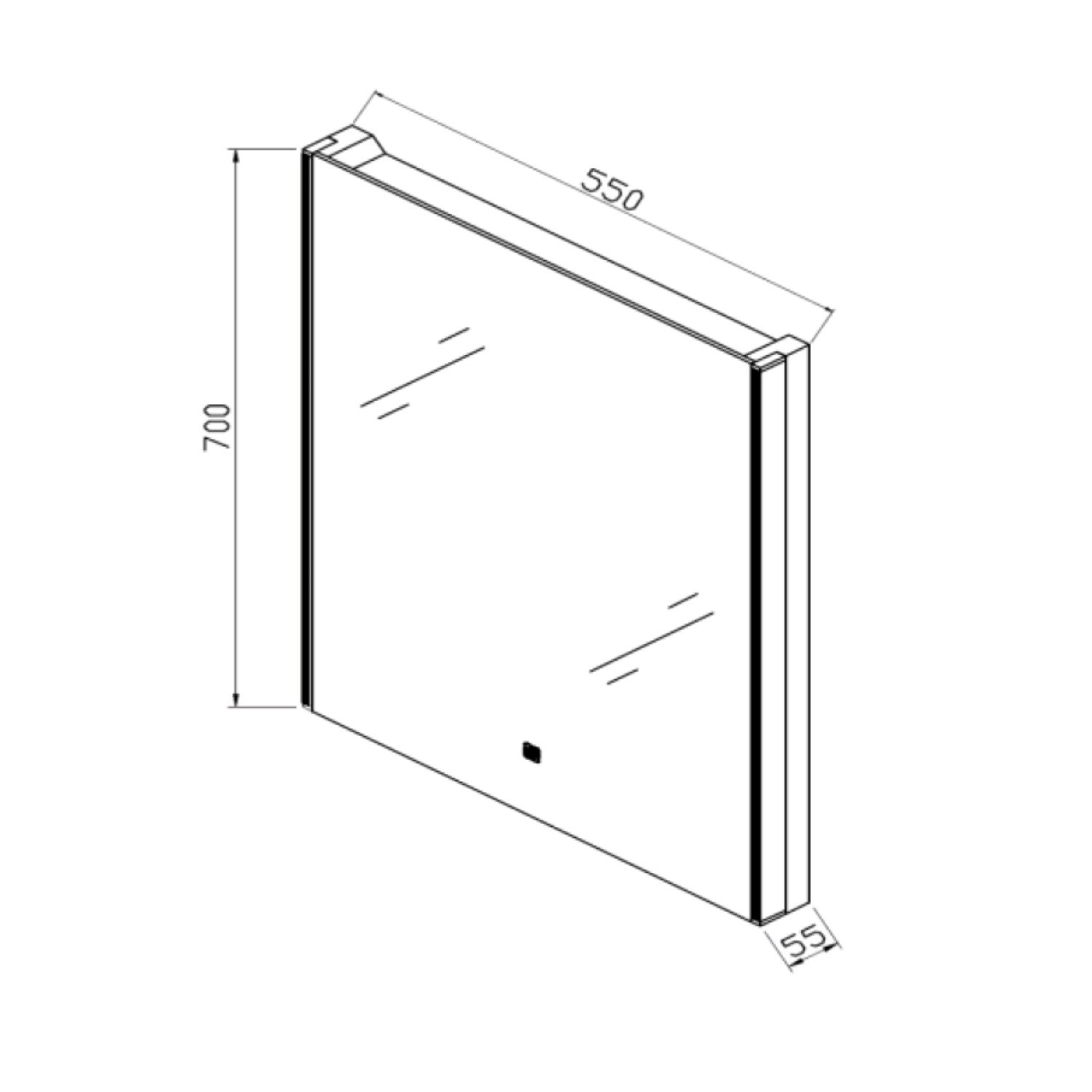

Rak Resort Led Mirror With Demister Pad And Shaver Socket 700 X 550mm

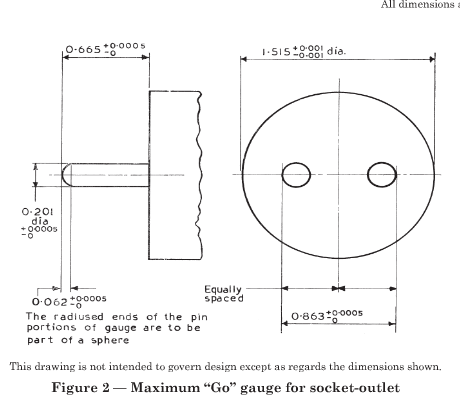

Shaver socket diagram. From behind the shaver socket you can route the wires through your walls and up to the mounting box. It is not permissable within the uk for the shaver socket to be fitted and used for a higher rated current draw than the 200 ma maximum. Find out how to fit a shaving socket. The shaver socket outlet incorporates a current limiting device other than a fuse which may be of either the manually resetting or the self resetting type. Uk shaver sockets are designed to accept bs 4573 shaver plugs while also accepting europlugs. A shaver socket outlet conforming to bs 4573 has a restricted continuous current rating of 200 ma for use on voltages of 200 v to 250 v ac.
This is a key step for anyone fitting a shaver socket. Fitting an electrical shaver point where and how to fit a shaving socket. Connecting the shaver socket in the way you describe would place it in series with the light when the light was switched off the socket would probably work if the lamp is a standard fillament lamp and the switch would short out the power to the socket when the light was on the light would work the socket would not. The shaver socket does not need an isolator. The advent of bathroom gadgets such as electric toothbrushes has meant that more and more of us need to use a shaver point in the bathroom. Prior to commencing any work with the wiring ensure to turn off the electricity supply at the power mains.
I understand that this a special location so needs completing by a competent person which it will be however i am one for learning and understanding so just wondered if you guys think the following wiring diagram is correct and complies with regs or not. See a wiring diagram how to wire your shaver socket when installing it. 7 when connecting the new accessory ensure that only the bare end of the wire enters the. Hi im looking at getting a shaver socket and illuminated mirror put into my bathroom. Advice on installing a shaver socket to update your bathroom. The subtle design will blend with any décor suitable for domestic or commercial installations.

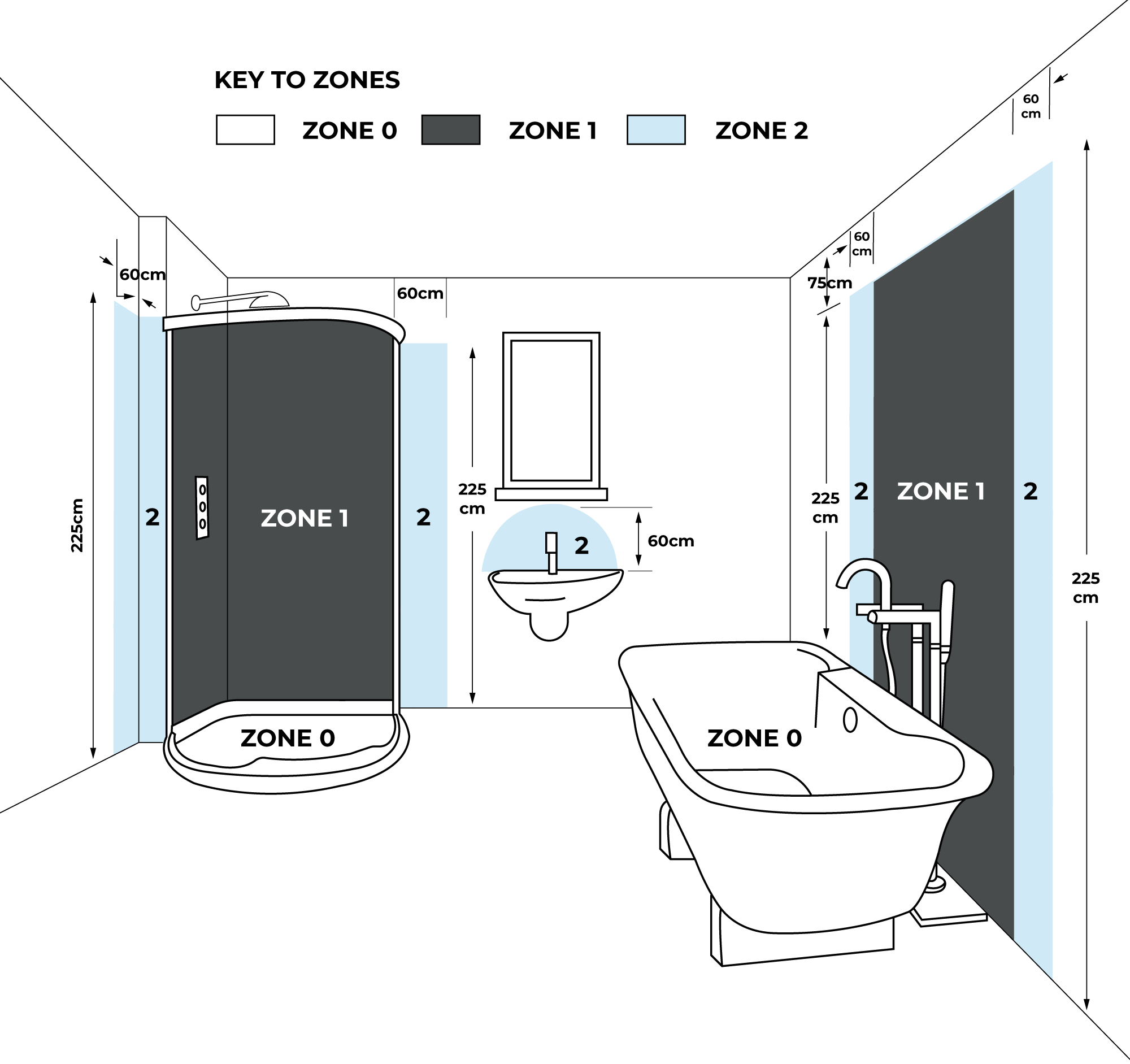

The shaver socket would. Shaver socket brief product description. The trickiest aspect of the process is wiring the shaver socket up to the main power. Fitting a shaver socket is a relatively straightforward task but as with any type of work involving electricity it is best to fully understand the job before getting started and if in doubt at any stage call in a professionals. In this configuration the connection supply is only rated at 200 ma. Be sure where they are allowed to be fitted and understand the shaver socket regulations.
