3 pin xlr audio pinout. As the diagram below shows the four conductors are arranged in a cross formation the conductors.
Microphone Xlr Jack Wiring H1 Wiring Diagram
Balanced xlr wiring diagram. Balanced audio uses a cable made up of two conductors that are twisted. For a low level signal note that a standard xlr connection is for a balanced input which is normally a low impedance input. Xlr pin 1 to 14 plug sleeve. Xlr but the diagram for the balanced cable shows a 3 pin xlr. It reveals the components of the circuit as streamlined shapes and the power as well as signal links between the devices. The following is the aes industry standard for balanced audio xlr wiring commonly known as pin 2 hot.
Xlr pin 3 to 14 plug ring. It shows the elements of the circuit as simplified forms and the power and also signal connections between the tools. Some manufacturers especially in vintage equipment do not follow this standard and instead reverse the polarity of pin 2 and 3. Normally the 3 pin xlr is connected to a 14 trs phono jack for balanced mono. A wiring diagram is a simplified standard photographic depiction of an electric circuit. Xlr pinout balanced a balanced system is used in pro audio systems xlr wiring diagram shown below with an overall screen covering a twisted pair.
3 pin xlr wiring standard. The rear view is the end you solder from here are the connections on each pin. Collection of xlr wiring diagram pdf. This wiring configuration gives you a balanced mono audio cable. 3 pin xlr wiring diagram cable wiring etc cable designed for being cut into standard mic cables may have 2 pairs of wire and a shield around the outside in that case pair the colors together and make sure they go to the same pin number on each end. A wiring diagram is a streamlined conventional photographic depiction of an electric circuit.

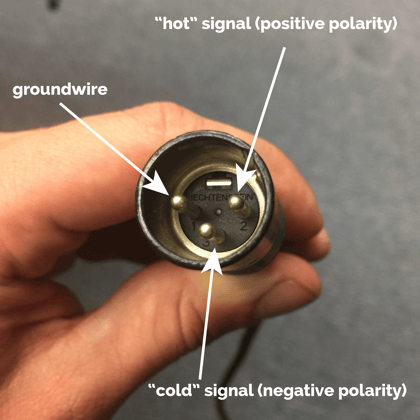

The above diagram shows you the pin numbering for both male and female xlr connectors from the front and the rear view. Xlr to 14 trs connector wired for balanced mono the usual way to connect a 3 pin xlr to a 14 trs aka stereo jack plug is to use the following pin allocation. Pin 2 on the xlr is hot and carries the positive going signal whilst pin 3 is cold and provides the return. Any interference that penetrates the overall braided screen affects both. Collection of xlr to mono jack wiring diagram. Starquad wiring for balanced xlr to xlr connections.
3 pin xlr connectors are standard amongst line level and mic level audio applications. Xlr pin 2 to 14 plug tip. Wire the consumer microphone signal ground to xlr pins 1 and 3 mixer ground and signal ve and wire the consumer signal core to xlr pin 2 signal vethis can either be done as shown in the diagram with a tip sleeve line jack socket going via a short section of unbalanced audio single core coaxial cable to a 3 pin xlr plug to go into the. To properly wire a balanced to balanced cable using 4 conductor starquad and maximise noise rejection opposing conductors are terminated together into an xlr 3 connector or terminal block.
