Wiring diagram of distribution board. This type of arrangement is the commonly used method of distribution board for house wiring. Distribution board wiring is very important for controlling the e wiring. 559 kb wiring diagram of energy saving streetlighting paneljpg 2095 1455. Wiring diagram of single phase distribution board with rcd in nec us iec uk eu electrical wiring color codes double pole mcb dp the isolator or main switch this is the main operating switch which is used to control the electric power supply in the buildings. Through the mcb phase lines are distributed to electrical wiring for lighting fixed devices and power distribution points. 215 kb wiring diagram of fuse box punane 39jpg 2100 1280.
Mpp solar power invertermpptcharger all in one complete review duration. See more ideas about distribution board electrical wiring electrical installation. In the diagram is shown the method of wiring distribution main board form utility pole to energy meter and then dp circuit breaker and sp mcb breaker. How to wire a distribution board. The cable or wire size the rating of breakers fuse etc depends on the type of wiring purpose and rating of loads. Wiring a distribution board db is vital in any electrical installationall the electrical sub circuits are originated from a distribution boardthe main feeder cable to the distribution board should be able to handle the total power anticipated when all the sub circuits in the distribution board are in use.

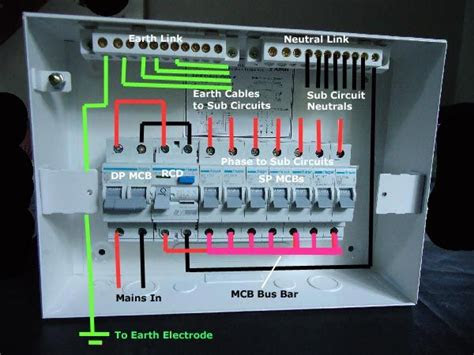

Distribution board aslo know as panel board switch fuse board or consumer unit is a box installed in the building containing on protective devices such as circuit breaker fuses isolator switches rcds and mcbs etc. Rcd wiring installation in single phase distribution board the wiring installation of rcd is very simple in main distribution board you need to connect the fixed rcd after the main two pole circuit breaker. Diy solar power with will prowse 212830 views. This is for rules in south africaplease check you rules and regulations. Singele phase db wiring diagram single phase. The electric main supply 230v ac 120v ac in us is connected through secondary of the transformer 3 phase 4 wire.
Here is the rcd wiring diagram in which i install the main distribution board. This video will show you how to connectwire a home distribution board. For this post i designed a diagram about distribution wiring we can called this circuit breaker or controlling fuse box.
