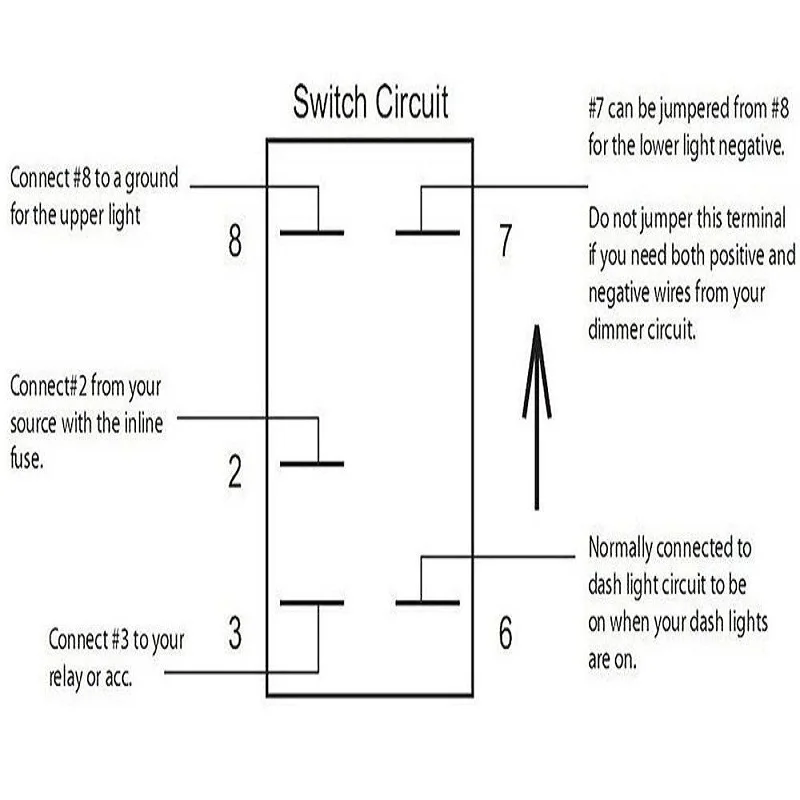

To wire a 3 pin switch to a 5 pin rocker switch you need to find out what your 3 wires do. The wiring diagram to the right shows how the contacts and lamps are wired internally.
Need Help With Can Am Light Bar Install Defender Lighting
Wiring diagram for 5 pin rocker switch. Wire a dpdt rocker switch for reversing polarity. With such an illustrative manual youll be capable of troubleshoot avoid and total your assignments with ease. A double pole double throw switch is used for this purpose but you have to wire it up correctly. Mictuning ls083001 hf laser roof led light bar on off rocker switch with jumper wire 5 pin 20 amp 12v led lights blue 950 mictuning 5 pin green laser fog lights rocker switch onoff 12v 20a. 5 pin relay wiring diagram 5 pin relay wiring diagram 5 pin relay wiring diagram 87a 5 pin relay wiring diagram driving lights every electric structure is composed of various unique components. An illuminated rocker switch is like a spst toggle switch with an extra terminal which allows the light to work.
This makes it very easy to see your switches at night. The vjd1 rocker switch has 7 prongs on the back called terminals. As shown below rocker switches have 3 electrical connections. Rocker switch wiring diagram. If youre replacing an existing rocker switch it will likely have vjd1 stamped on the side of the switch housing but this switch will also replace a v6d1 a vjda and a v6da. Aurora wiring harnesses are set up as black groundnegative red positive blue power to lighting product.
If you are trying to convert a 3 pin light bar switch to a 5 pin rocker switch then please read below. Also relays can be used to switch higher draw accessories to reduce switch load and voltage drop. The dual led allows you to illuminate part of the switch with your dash lights. In this video i show you how to wire a dual led rocker switch. The diagram below represents the schematic diagram for a spst rocker switch. 5 pin rocker switch wiring diagram you will need an extensive professional and easy to comprehend wiring diagram.
5 pin rocker switch wiring diagram. With just a few small jumpers our switch selection can be used for a multitude of different functions. You might want to review the article on toggle switch wiring before proceeding. Now that you have an idea how rocker switches are constructed internally lets go over the wiring diagram so that you will now how to connect a rocker switch to a circuit. When you need to control a dc motor such as a dc linear actuator you usually need to be able to swap the polarity on the wires going to the motor.
