Wiring a trailer plug south africa. Jul 2 2019 7 pin trailer plug wiring diagram south africa google search. Anton diedericks created date. Does the same colour wires go on the female car side of the plug. To keep yourself and your family safe from electric shock youll need to know how to correctly wire a three pin plug and how to spot wiring thats been done incorrectly. This is the view from the rear as you look at the terminals to wire the plug or socket. Should yours get damaged over time randburg midas has available in stock midaspow.
Terminal no 3 white has a wire connected at the socket so as to ensure that the trailercaravan is also connected and this white wire must be connected to the chassis of the towing vehicle as well. Venter nosecone and fridges. If you own an older vehicle chances are it will have neither trailer package factory installed nor t connectors available for it. The tow hitch of the van or trailer must be on the tow bar of the vehicle so as to create an efficient earth connection. In all cases the terminals will be numbered. 322005 120108 pm.

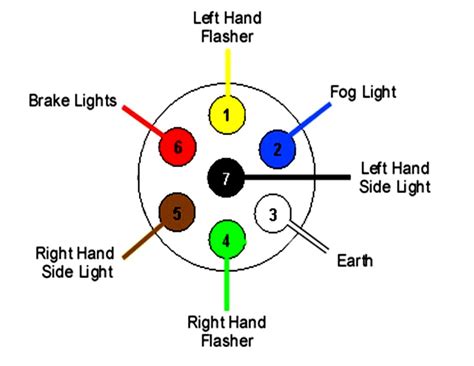

South africas mains electricity supply is about 220v. This is a wiring diagram for a 12n 7 pin standard trailer socket. That can be deadly if its not used properly. Wiring diagram trailer sabs 7corecdr author. This vehicle to trailer wiring harness creates a standard trailer wiring connection by plugging into vehicle harness and tail light assembly and then routing the 4 way harness to the rear end of a vehicle. Heres your step by step guide to doing it right.
Car trailer plug wiring diagram south africa.
