A wiring diagram is a streamlined conventional photographic representation of an electrical circuit. If you have a 120v coil instead of running a line from coil overload l2 you must run coil overload neutral.
Practical Machinist Largest Manufacturing Technology Forum
Westinghouse motor starter wiring diagram. A motor starter is a combination of devices used to start run and stop an ac induction motor based on commands from an operator or a controller. Teco westinghouse motor wiring diagram gallery magnificent westinghouse wiring diagram frieze simple wiring. There are two circuits to a starter the power circuit and the control circuit. A200 starters can be furnished. Westinghouse electric motor manufactured in 76. Teco westinghouse motor dimensions.

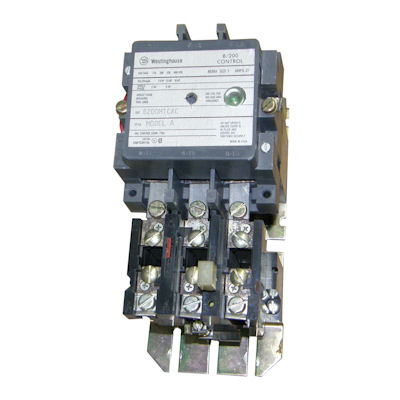

Westinghouse specification data 8280 page 1 a200 magnetic control a200 non combination starters 100 hp 600 volts maximum 60 hertz ac application a200 magnetic motor starters are designed for across the line control of squirrel cage motors or as the primary control for wound rotor motors. With it came an old westinghouse 12 hp 1725rpm motor 115 volts serial. It seems to me that the terminals are bypassed as the power cord is directly connected to the motor. The motor is separate from the press and is an addition that most printers added to run the press via belt and flywheel to make printing much quicker. Line voltage control three phase 3ph motor starter controlling a three phase motor rev 08 aug 2006 the above wiring diagram assumes your magnetic starter has a 240v coil. Merely ignore the control wiring in red.
Wiring diagrams reversing starter reversing starter non combination reversing starter combination f r f r f r a1 4 2 if used a2 a1 5 7 3 6 a2 1 ol remote control stations starter elementary diagram l1 l2 l3 ac motor t1 t3 t2 lines contactors f and r are mechanically interlocked ol ol r f f rls f r fls r forward stop reverse. Assortment of 3 phase motor starter wiring diagram pdf. It shows the parts of the circuit as simplified shapes and also the power and also signal links in between the tools. Basic wiring for motor contol circuitry of a starter the two circuits of a motor starter are the power and con trol circuits. The previous owner ran the motor off of a 2 prong plug with no ground. Teco westinghouse motor dimensions.
In north america an induction motor will typically operate at 230v or 460v 3 phase 60 hz and has a control voltage of 115 vac or 24 vdc. I would like to fix this. Rpm 17251140 12 hp 115v 60hz thermally protected l type. When plugging the motor i hear a humming sound and i have to hand turn the shaft to make it rotate any direction. By continuing to use this site you consent to the use of cookies on your device as described in our cookie policy unless you have disabled them. The electricity that passes through the contacts of the starter through the overload relay and out to the motor is called the power.
Looking for a wiring diagram for a westinghouse motor starter style 2094a84g01 answered by a verified electrician we use cookies to give you the best possible experience on our website. E510 405 h3fn4s u teco westinghouse.
