Its purpose is to show you step by step how to convert your current 4 foot t8 or t12 fluorescent tube light fixture to use the starled ballast. Wiring diagram how to bypass ballast for led tube.
T5 Led Tube Wiring Diagram T8 Led Tube Led Tubes Led
T8 led bulbs no ballast wiring diagram. With shunted sockets you are utilizing both sockets to. No power will be run to the other end the diagram below is for single end led t8 ballast bypass lamps. Be sure to read the instruction manual that comes with. It shows the components of the circuit as streamlined shapes as well as the power and also signal connections between the gadgets. The non shunted socket will allow you to utilize single end power t8 led bulbs. Cut back additional wiring on opposite side of ballast as the led tube lamp only requires power at one end.

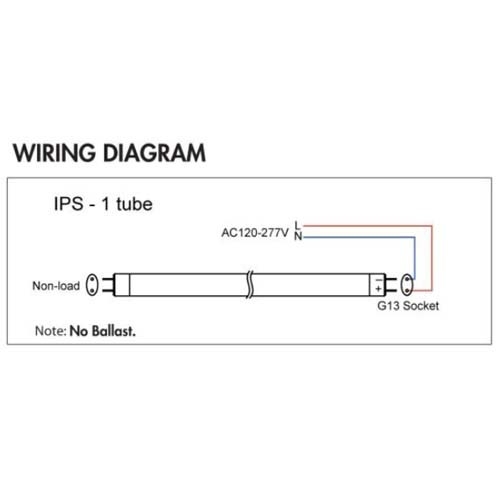

T8 linear ballast bypass led installation overview. A wiring diagram is a streamlined standard pictorial representation of an electric circuit. Variety of 2 lamp t8 ballast wiring diagram. T8 led wiring instruction diagram with no ballast 1 hot black wire 120v live wire to any pin on one end of troffer. T8 led wiring instruction diagram for multiple tubes. A wiring diagram is a simplified standard pictorial representation of an electrical circuit.
It shows the parts of the circuit as streamlined forms and also the power and signal connections between the gadgets. 3 insert t8 led replacement into luminaire fixtures with no ballast. Assortment of t8 led tube light wiring diagram. When wiring t8 sockets for single end power bulbs you must use non shunted sockets. Installation requires knowledge of fluorescent lighting fixtures and electrical systems. 2 cold neutral white wire to any of other three pins on troffer.
