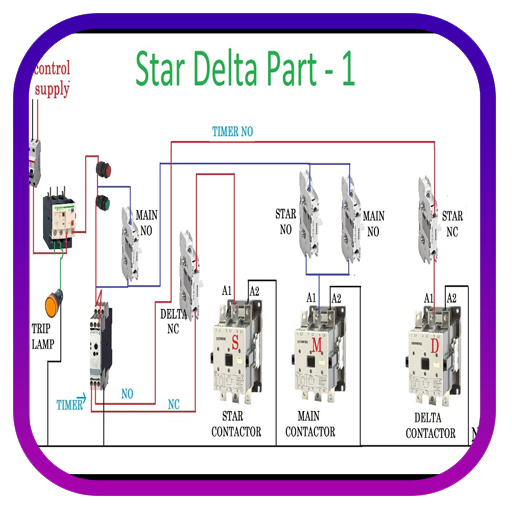

In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. A 8 pin timer are used.
Star Delta Starter Connection Working Advantages Video
Star and delta starter control diagram. Ryb electrical 597548 views. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. Star delta connection duration. The control circuit uses to control the starter circuit such as on off and tripping operations. Here the circuit diagram of star delta starter explained in detailhere you will learn the connection of star delta starter with three phase motorthe power circuit diagram and control circuit diagram of an automatic star delta starter are explained belowlets understand the star delta starter diagram. Dosto aaj ki is video me aap dekheenge star delta starter control circuit diagram or kaise kaam karta hai stardeltastartercircuit subscribe yk electrical for electrical videos.
The power circuit uses to create contact between the motor and three phase power supply. Star delta starter control circuit diagram. The on delay timer diagram is also shown in the diagram. This is a big advantage of a star delta starter as it typically has around 13 of the inrush current compared to a dol starter. A star delta starter is a type of reduced voltage starterwe use it to reduce the starting current of the motor without using any external device or apparatus. Star delta starters consist of a power circuit and control circuit.
Star delta starter control circuit diagram is today topic. Refer to the below star delta circuit. In this post you will learn complete star delta starter wiring with timer normally open push button switch and normally close push button switch. Star delta starter without timer for 3 phase induction motor. Star delta connection circuit diagram. R y b red yellow blue 3 phase linescb general circuit breakermain mai supplyy starδ deltac1 c2 c3 contatcors power diagramol over load relayno normally opennc normally closed k1 contactor contactor coil k1no contactor holding coil.
Power control wiring diagram of star delta starter. In the diagram of power circuit of star delta starter u2 and v2 of 3 phase motor should be connect to 4 and 6 respectively instead of u2 and v2 are connected to 6 and 4 of delta contector km2. Understanding star delta starter. In my last post i share a star delta starter wiring diagram 3 phase motor connection. Star delta starter control circuit diagram. There is minor correction is require to change printed in boxes sequence of 3 phase wires from w2 v2 u2 to w2 u2 v2 to get delta connection properly.
In control wiring diagram all magnetic contactors coils are rated 220 vac.
