The black and red wires between sw1 and sw2 are connected to the traveler terminals. How to wire 3 way switches power to the first switch electrical question.
3 Switch One Light Control Diagram Three Way Lighting Circuit Earth Bondhon

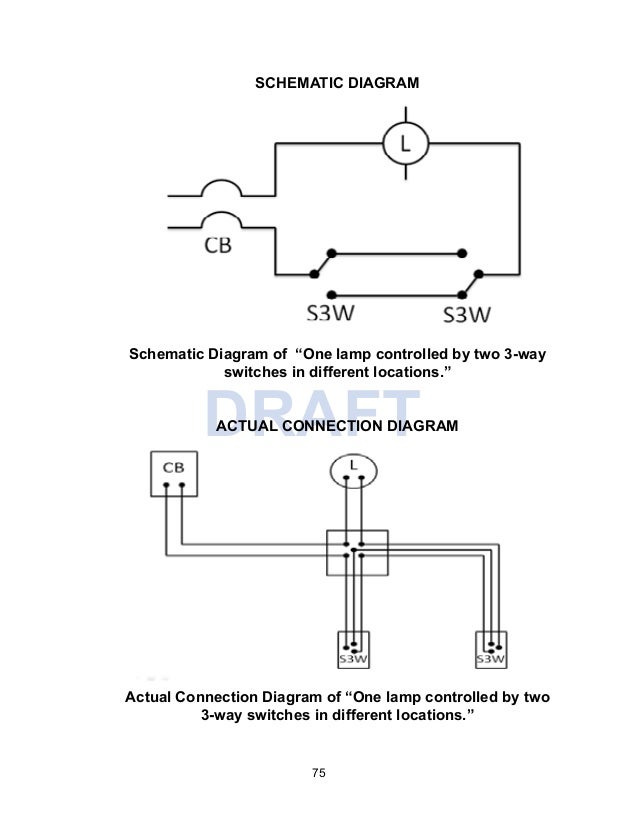

Schematic diagram of 3 way switch. It shows the elements of the circuit as streamlined shapes and the power and also signal links in between the devices. The black line wire connects to the common terminal of the first 3 way switch. In the ceiling light fixture electrical box one black wire from a 3 way switch gets connected to the black load wire on the light fixture. Pick the diagram that is most like the scenario you are in and see if you can wire your switch. Typical 3 way switch wiring nm cable. Assortment of 3 way switch wiring schematic.
With these diagrams below it will take the guess work out of wiring. Assortment of fender telecaster 3 way switch wiring diagram. Three wire cable runs between the switches and 2 wire cable runs to the light. A wiring diagram is a streamlined conventional pictorial depiction of an electrical circuit. Take a closer look at a 3 way switch wiring diagram. A 3 wire nm connects the traveler terminals of the first and second 3 way switch together.
If you have any problems with these switches it may be best to call an electrician. It reveals the components of the circuit as streamlined shapes and the power and also signal links in between the gadgets. In the 1st diagram below a 2 wire nm cable supplies power from the panel to the first switch box. Wiring diagram 3 way switch with light at the end in this diagram the electrical source is at the first switch and the light is located at the end of the circuit. 3 way switch wiring diagram. Three way switches allow for controlling a light fixture from two separate locations these are usually used at the top and bottom of a flight of stairs or at two different entrances to a room.
3 way switch wiring diagram depicting all wires in the ceiling junction box. This 3 way light switch diagram shows connections when the power comes into the first switch on to the second switch and then on to two or more lights switched by the 3 way circuit. A 3 way switch wiring diagram is a simple drawing showing how to connect the wires to each of the four screws on the 3 way switch. The diagrams below show the conventional wiring for 3 way switches. Im looking for a schematic wiring diagram on how to do a 3 way switch with a switch light light switch with power coming into the first switch. This might seem intimidating but it does not have to be.
In the above 3 way switch wiring diagram at each switch the black wire gets connected to the copper or black screw. The black screw on a 3 way switch diagram is for the continuous hot wire that comes from the circuit. I have the understanding of a normal 3 way switch but the extra light has thrown me. See alternate 3 way switch wiring configuration for another way 3 way switches may be wired. A wiring diagram is a simplified conventional photographic depiction of an electric circuit. What is the black screw for on a 3 way switch diagram.
The diagram below is based on the video you watched above. Unfortunately not all 3 way switches are wired the conventional way. Traveler wires are interchangeable on each switch.
