An electric range cooktop or oven must be wired to a dedicated 240 volt circuit. Kitchen electrical wiring can easily be accomplished by first creating a kitchen electrical wiring plan.

Electrical Outlets Electrical Outlets Kitchen Island

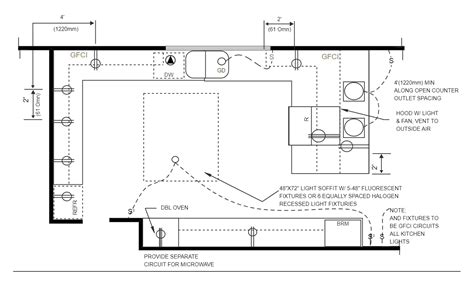

Kitchen island wiring diagram. If youre remodeling your kitchen be sure to note how many plugs cords lights and appliances there are. During new construction or major kitchen remodeling the building code will likely require that you bring both the plumbing and wiring systems into alignment with the current code requirements. This circuit can be extended off of the existing kitchen counter top outlets or be placed on a dedicated circuit depending on the loads of the anticipated connected devices. One of the trickiest parts of installing a kitchen island is running electrical wiring to the island and theres only one way to do it. How to run electrical wiring to a kitchen island. Other appliances are 120 volt.

George the kitchen island must have an outlet that is placed on a gfi protected circuit. When planning your kitchen wiring you must take into account appliances that will move from place to place appliances that stay stationary outlet placement for optimal usage lighting locations for optimal light coverage in areas needed and any specialized outlets or flexible. Kitchen wiring in newer or remodeled kitchens. An island brings extra counter and storage space to a kitchen. This often involves adding electrical circuits and adding gfci andor afci protection. The following links will assist you with kitchen electrical wiring.

If the countertop space is greater than 12 by 24 inches which is true for the. Wiring for kitchen appliances. Drill a hole in the floor at the desired location running the wiring to the household electrical panel through the basement or crawl space. It will help determine your wiring layout.
