The first one is battery charging circuit which acts as an indicator circuit when the power supply is turned off. I have divided the circuit into two parts.
Emergency Fluorescent Light Wiring Diagram C3 Wiring Diagram
Emergency lighting system circuit diagram. Automatic emergency light circuit diagram. The automatic emergency led light circuit can be designed in two parts. The second circuit is the emergency lights circuit using leds. It is designed to come on in the event of a mains power failure making sure all emergency exit routes are clearly illuminated but will not be active as your normal day to day lighting system is. Emergency light circuit diagram an emergency light system is used to turn on a lamp automatically where a regular ac supply stops working and turns off once the main power supply gets back. Emergency light is an integral part of household electronics nowadays.
Due to the pwm circuit the acquired backup can extend up to more than 25 hours on every single recharge of the battery rated at 12v25ah. This light is essential where the power cut occurs frequently so it can avoid the user from a difficult situation while going through when unexpectedly. Automatic emergency led light circuit diagram. The first one is the battery charging circuit which also acts as an indicator circuit if the mains supply is shut down. We all know emergency light is used during the power failure to light up the home. Based on the mains supply and the lighting conditions the emergency leds are.

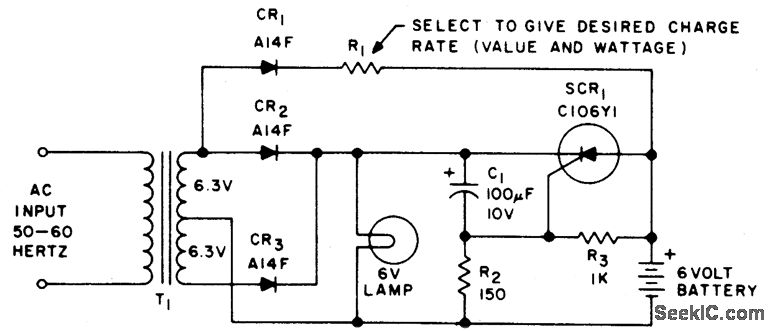

The circuit also features an optional emergency battery back up system which may be employed for getting an uninterruptible illumination from the leds even during the absence of normal mains ac. As it is used during the power failure it should last long hence generally bright white leds are used in emergency light because they produce more light and consume less power. Assemble the components as shown in the below circuit diagram.
