Easy 3 way switch diagram. Wiring a 3 way light switch. To wire a 3 way light switch youll need 2 3 way light switches 2 2 wire non metallic cables 1 3 wire non metallic cable and 2 6 inch grounding wires. A 3 way switch wiring diagram is a simple drawing showing how to connect the wires to each of the four screws on the 3 way switch. This might seem intimidating but it does not have to be. First run a 2 wire cable from the wall power to the black screw on 1 of the switches. 3 way switch wiring diagram 1 above shows that the electric circuit source power is located at the left side 3 way switch box.

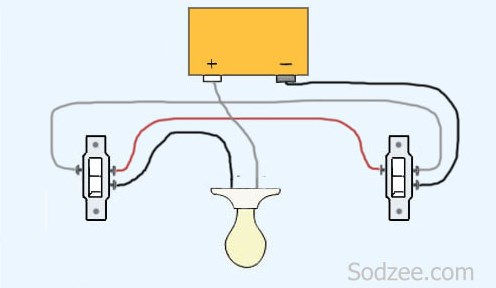

In this diagram the source for the circuit is at the light fixture and the two switches come after. The black screw on a 3 way switch diagram is for the continuous hot wire that comes from the circuit. With a pair of 3 way switches either can make or break the connection that completes the circuit to the light. The diagrams below show the conventional wiring for 3 way switches. 3 way switching provides switching from two locations. If you have any problems with these switches it may be best to call an electrician.

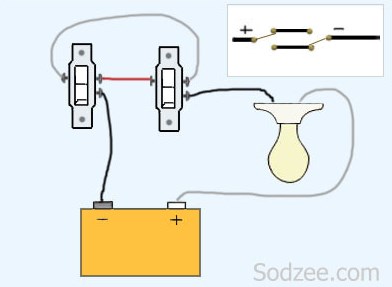

This may be one of the most common way to wire a 3 way switch. The diagram below is based on the video you watched above. Pick the diagram that is most like the scenario you are in and see if you can wire your switch. Light switch at one end lights in the middle light switch at the other end. With these diagrams below it will take the guess work out of wiring. 3 way switch wiring with light first.
Trace the wires carefully in the diagram so you can connect them to the proper locations. What is the black screw for on a 3 way switch diagram. Our easy to follow 3 way wiring diagram changing from a single pole to a 3 way light switch allows you to turn on a light from multiple locations such as at the top and bottom of a staircase or both ends of a hallway. The cable wires lead to a second 3 way switch box on the right side. Take a closer look at a 3 way switch wiring diagram. Wiring a 3 way light switch is certainly more complicated than that of the more common single pole switch but you can figure it out if you follow our 3 way switch wiring diagram.
Unfortunately not all 3 way switches are wired the conventional way. Think of your staircase or hallway. See alternate 3 way switch wiring configuration for another way 3 way switches may be wired. Interested in a 4 way switch wiring diagram.
