Each house should ideally have at least two lighting circuits. Unfortunately this is usually encounted in stairwells with the line from the downstairs lighting circuit and the neutral connected to the upstairs lighting circuit.
Light Wiring Diagrams Light Fitting

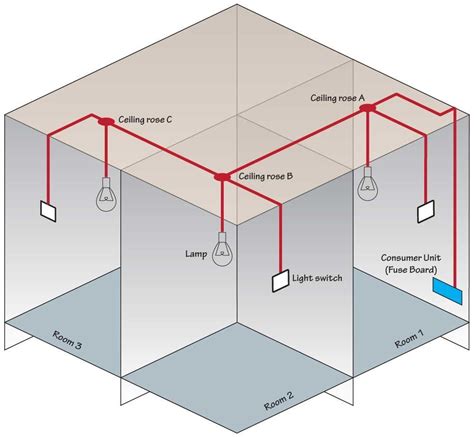

Domestic lighting circuit wiring diagram. The circuit is fed to each lamp fitting in turn and a. Two way lighting circuit wiring two way switching is the most common requirement for many household and commercial lighting solutions. A lighting circuit can serve up to 12 x 100w bulbs. Lighting circuits should be installed using 15mm² two core and earth cable protected by a 5amp fuse or 6amp mcb. Each circuit is protected by its own fuse. Each protected by a 5 amp fuse or 6 amp trip in the consumer unit.
Safety lighting circuits overview types of lighting switches lighting circuit switch arrangements lighting ceiling rose wiring looped ceiling rose multiple lights from a single switch older colour codes for ceiling rose. In modern domestic properties in the uk the main electric lighting circuits are separate from the power ring main circuit. The switch wiring is all the same but the switch wire cable c leads up to a different set up. There is a chance that if your house has these old wiring colours the switch drops may be from a loop in loop out radial lighting circuit done with junction boxes rather than ceiling roses as shown in fig 2. This does not include the light switches which should be wired in switch wire which contains 2 red cores. Using 1mm cable is allowed for up to 95meters of circuit length.
We have and extensive collection of common lighting arrangements with detailed lighting circuit diagrams light wiring diagrams and a breakdown of all the components used in lighting circuits. The latter is often used when adding lighting points to an existing circuit. Basic home wiring circuits. Loop in as per diagram above. If you need to know how to fix or modify a lighting circuit youre in the right place. Lighting circuits as found in domestic properties in the uk.
The radial lighting circuit has 3 common wiring options which may be mixed at will. It can also be used in domestic properties by using twinearth cable between the switches and 1coreearth from the switches to the ceiling rose. Simplified wiring layout the diagram below shows a simplified version of what you might find in your basic home wiring circuits. Before starting trial and error. Three core and earth cable should be used to install two way light switches in areas such as staircases. Always isolate any electrical circuit before working on the circuit.
Type two lighting circuit. Cable will be used for lighting. A high current mcb supplying storage heaterssometimes these are run from the main cu but often from a timeswitch controlled dedicated cu with either a separate off peak electricity meter or a dual tariff meter. You will commonly find a lighting circuit and socket ring on each floor and sometimes several on each floor in larger houses. Whether it is the switching of a light from two different places inside a domestic dwelling or switching a series of lights in a commercial environment two way lighting circuits provide a cost effective and.
