Connection of led tube light. Connection instructions led tube light installation ballast bypass cut the load and neutral wires from the ballast leaving a sucient amount of wire to connect back to the 110 vac power source. How to convert your fluorescent lights to led. After replacing the led light sockets or verifying you have the correct socket were ready to move on. Convert t8 t12 fluorescent tube light to single end powered led t8 tubes by total lighting supply duration. As a result it oftentimes makes the most economical sense to simply use the same fluorescent fixture but replace the fluorescent tube with an led tube light. Shunted or non shunted lampholders can be used with dual ended led tubes.
Led lamps 24 pack. Single ended led tube wiring if shunted lampholders are used in a light fixture they must be replaced with non shunted at the location where line and neutral are to be connected. Dual ended tubes can be reversed in a light fixture just like a fluorescent tube. When using non shunted lampholders the wires only need to be connected to one side of the lampholder with most led tubes check the wiring instructions. Connecting line and neutral to a shunted lampholder will cause a short circuit inside the lampholder. Httpsamznto2ygxbho be sure to purchase bulbs that are for use without a ballast and that are wired the same way as these it.

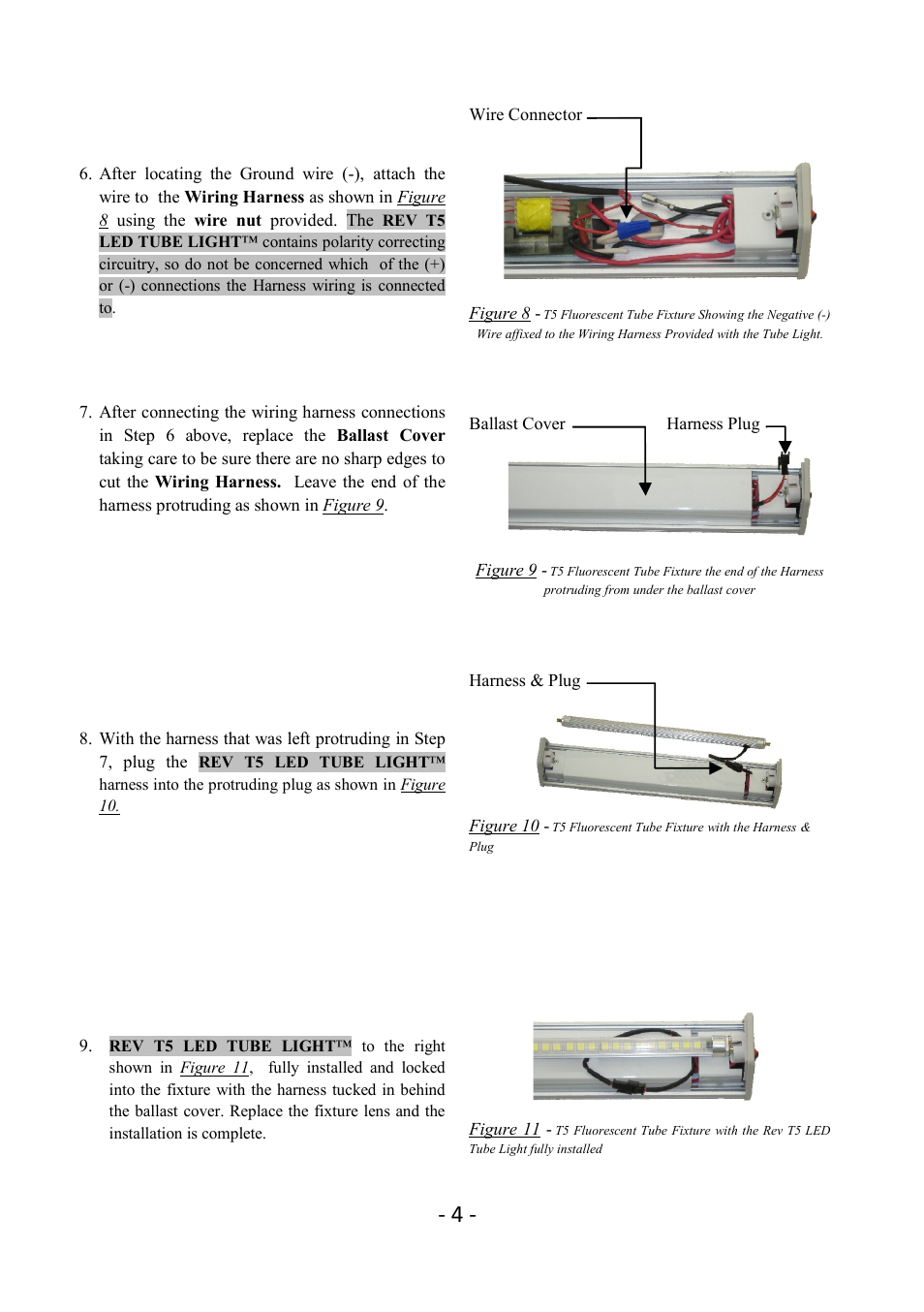

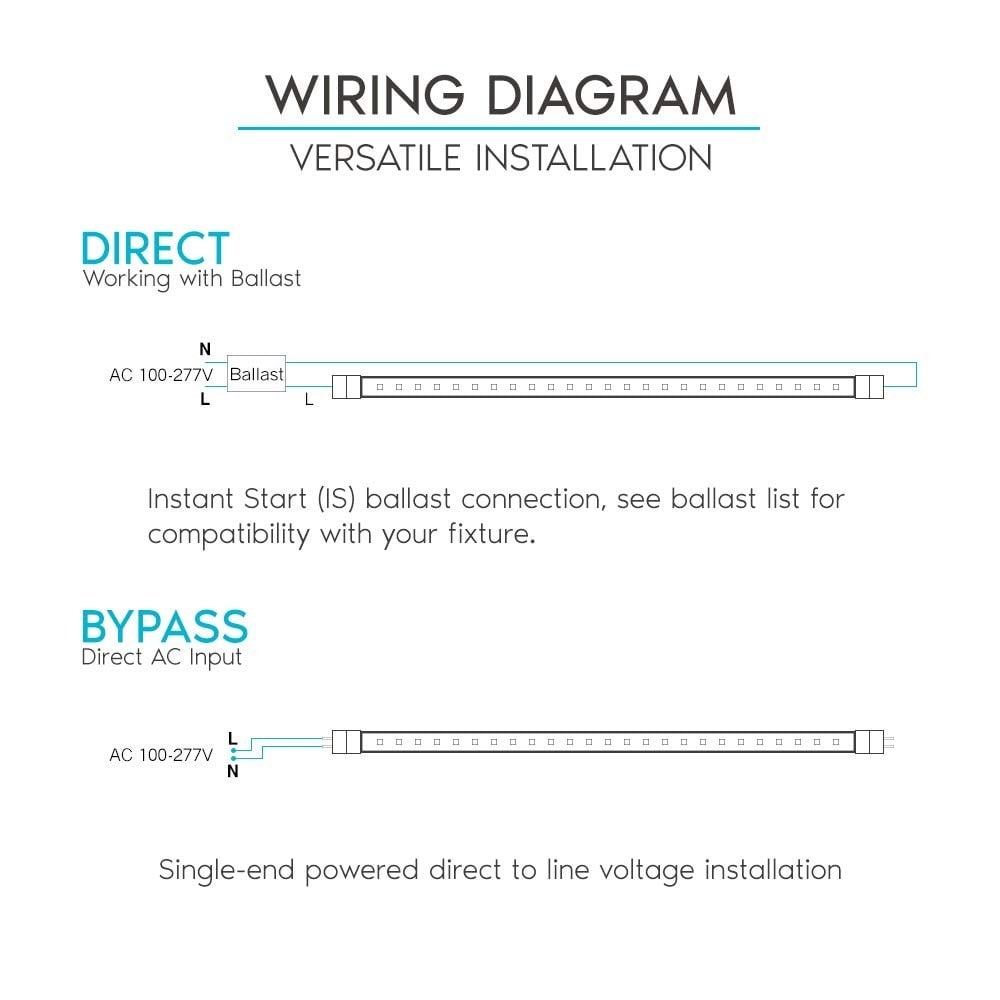

Fulight rotatable led f15t8 tube light 18 17 3 4 actual length. Parmida 20 pack 4ft led t8 ballast bypass type b light tube 18w ul listed for single ended dual ended connection 5000k 2200lm clear lens t8 t10 t12 ul dlc 45 out of 5 stars 145 9576 95. For this application of fixtures for tube lights one socket will have the live power and the other socket will serve solely as a lamp holder. This is shown in the following image which features the led tube light connection diagram.
