You cannot use dumb 3 way switches with smart switches you must purchase the matching ge add on switch to wire with your ge smart master switch. If your home has switch boxes without a neutral you basically have 3 options.

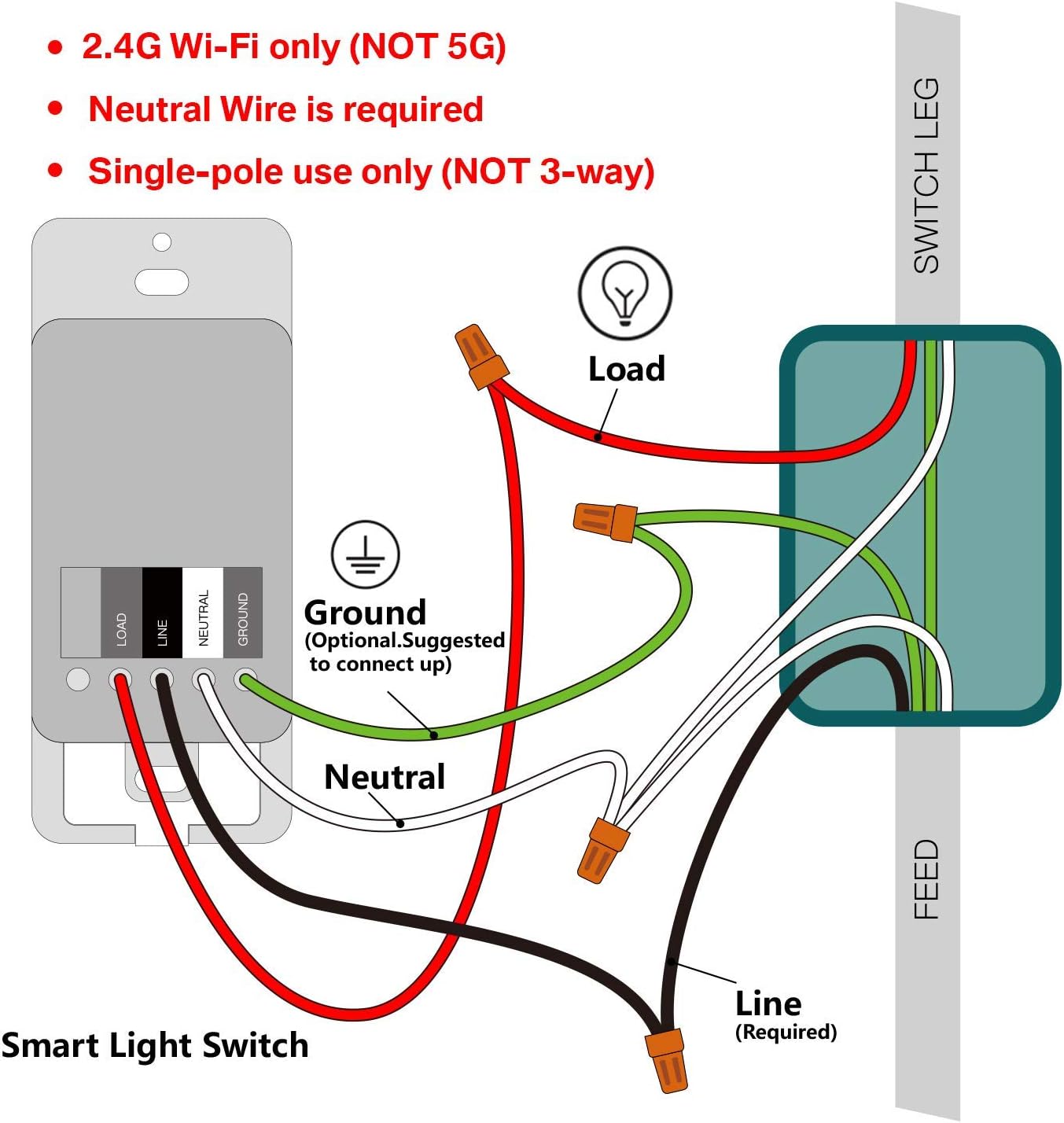

Treatlife Smart Light Switch Neutral Wire Needed 2 4ghz Wi Fi Light Switch Works With Alexa Google Assistant And Ifttt Schedule Remote Control
3 way switch neutral wire. No longer allowed after 2011 nec if no neutral wire in switch boxes 3 way switch wiring diagram light fixture between switchesline voltage enters the first 3 way switch outlet box light fixture is located between switch boxesno longer allowed after 2011 nec if no neutral wire in switch boxes. Wires consisting of a line a load a neutral a pair of travelers and two 3 way switches. With a pair of 3 way switches either can make or break the connection that completes the circuit to the light. If you are trying to troubleshoot a 3 way switch operation you will need to identify the function of each wire. 3 way switch wiring diagram line to light fixtureline voltage enters the light fixture outlet box. Since most insteon compatible wall switches and dimmers require a neutral wire connection to operate you need to know if you have one of these in place.
Some things to know. When wiring a 3 way switch circuit we will be using a 3 wire cable known as romex coming from the source such as the breaker box. Essentially it allows power to return to its original. The switch still breaks the circuit but in this case the smart switch can tap into the neutral wire to keep power flowing through the switch the electronics in the switch still break the circuit to the light but the switch maintains a circuit so it is always receiving power. 3 way wiring for smart switches is different than standard 3 way wiring. At the first switch location the feeder wire from the power source is a 2 wire cable with ground.
In a smart switch 3 way configuration a smaller charge is looped through the add on switch. Wiring a 3 way light switch is certainly more complicated than that of the more common single pole switch but you can figure it out if you follow our 3 way switch wiring diagram. What is a neutral wire. 3 options if you dont have a neutral. 3 way smart switch neutral wire required treatlife wifi light switch 3 way switch works with alexa google assistant remote control etl schedule 1 pack 46 out of 5 stars 866 1999 19. Wiring a 3 way light switch.
At this first switch the black feed wire is connected to the common screw on the switch. Then a 4 wire cable going between the two 3 way switches and then a 3 wire cable going from the switches to the load. A neutral wire is a type of wire in which carries currents back to the source of power and or regular voltage. This means that there is a black hot wire a white neutral wire and a bare copper grounding wire. Each 3 way switch in these examples are controlling the power source to the same load. All three way switch and 2 way switch wiring diagrams have the same basic components.
Adding a neutral requires adding an additional conducting wire between the fixture and the switch. Here is a diagram of a standard switch with a neutral wire.
