If you plan on wiring an outdoor shed to use as a workshop some sketches and photos of what you want will help when you get to the hands on phase. It requires planning and will likely take two weekends at least more if you end up having to dig a long trench.
Underground Fence Wiring Diagram C3 Wiring Diagram
Shed wiring plan. Plan your shed or basement wiring project when planning your shed office or workshop wiring project you should plan on meeting the basic wiring code requirements and then add any extras that you might like. That said in most cases wiring an outdoor shed is a project that a homeowner with some basic electrical knowledge can tackle on their own if they are willing. Once you plan your circuits in the shed youll want to assemble the materials. Wiring a shed is more complicated than most diy home improvement projects. The planning phase takes the longest. Since the national electrical code nec limits the number of bends you can make in the pipe to a total of 360 degrees you have to plan the route carefully.

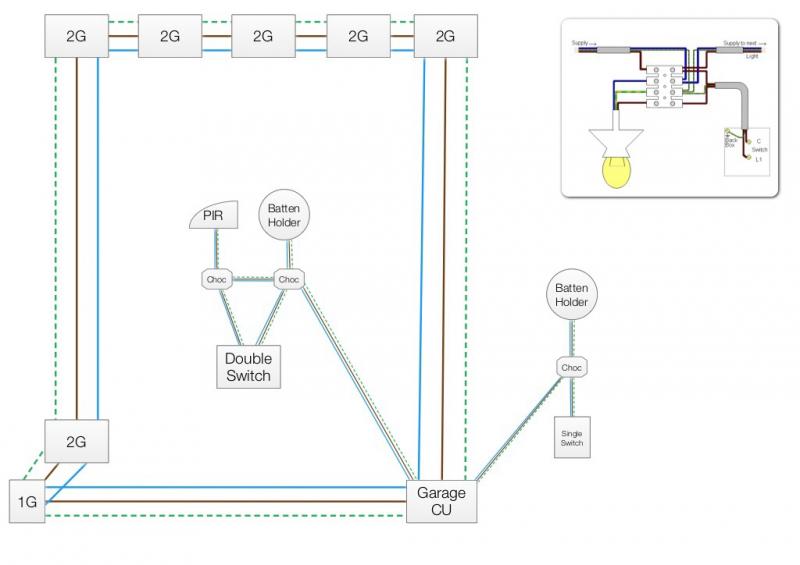

Carefully plan out each circuit and device and make the appropriate connections to ensure gfci protection. Calculate the amount of wire youll need as well as staples receptacles boxes lights and switches. The shed circuit wiring should be protected by gfci. The following articles provide detailed instructions for wiring a shed. The two 90 degree bends from the ground into the house and shed consume 180 degrees leaving you 180 degrees more for any additional bends. Draw shed wiring diagram.
Use this phase to consult with an electrician about the tools you plan to use and the strength of your circuits. If you are wiring a shed workshop or shed office then start by locating the required outlets and then adding extras like desk high.
